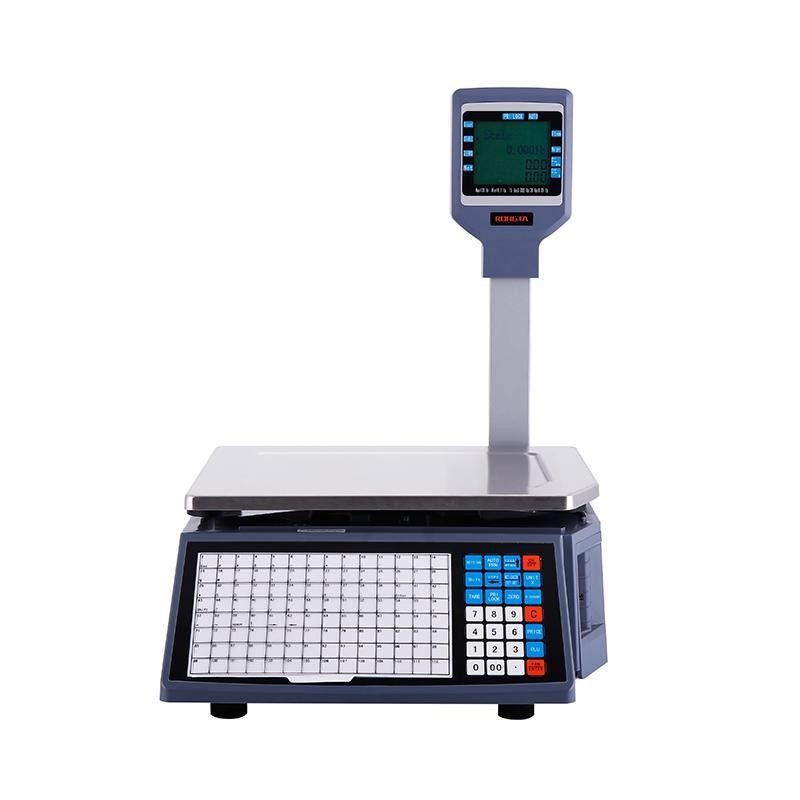

Product Description:
1. Double monitor,support display brand logo,convenient for promote
2. Double motor design(printing model),high effect,stabilization
3. Nice appearance,drawer type printing model design,easy for paper loading operation
4. Dampproof,insect prevention design,Avoid moisture and insects into the machine cause breakdown
5. Ultra-large capacity,Can store 10000 item,can set 224 hot keys, hot keys can fill
6. Upper software is multipurpose,support commodity management,items query,account checking…fuction
7. Support item number fast query function,can set variety discount information,support to print traceablity code
8. Support to ethernet/PLU upgrade and edit； support receipt bill and adhesive label printing；and QR code printing
9. Support variety barcode form, 8digit, 13digit, 18digit,support difference angles rotating print,Convenient barcode scanning
Technical Parameters:
| Capacity |
Max capacity |
6kg/15kg 15kg/30kg |
| Min capacity |
40g 100g |
| Interval |
2/5g 5/10g |
| Accuracy class |
III |
| Basic |
COG |
LCD 256X32 |
| SDRAM |
8MB |
| FLASH |
16MB |
| Ethernet |
1 x RJ45 |
| Serial |
1 x RS232 |
| Power source |
1 x AC Jack |
| Input |
AC100V-240V 50/60Hz 1.5A |
| Buttons |
Hotkeys:112*2；Preset keys:28 |
| Notification |
Buzzer |
| Dimension |
433(L) × 372(W) × 506(H)mm |
| Communication |
Ethernet |
TCP/IP 100M |
| Wi-Fi(Optional) |
IEEE 802.11 b/g/n,2.4GHz |
| Printer |
Printing |
Thermal print |
| Print width |
MAX 56mm |
| Print speed |
90 m/s |
| Printer resolution |
203 DPI |
| Paper out |
Auto peel off |
| Barcode format |
2/5 interleaved, 128 ,EAN13,GS128 |
| Reliability requirements |
Certification |
OIML,CE, Type evaluation, NTEP:RLS1000(RLS1200) |
| Implementation standards |
GB/T 7722-2020,OIML R 76-1(2006) and EN 45501:2015 |
| Operation environment |
Operating temperature |
0℃ ～+40℃ |
| Operating humidity |
20%～85% |
| Storage temperature |
-20℃～+60℃ |
| Operating temperature |
5%～95% |
| Packaging material |
Standard |
■Kraft paper■Styrofoam |
| ■Power cable■Scale pan■Warranty card■Certificate■User manual |
