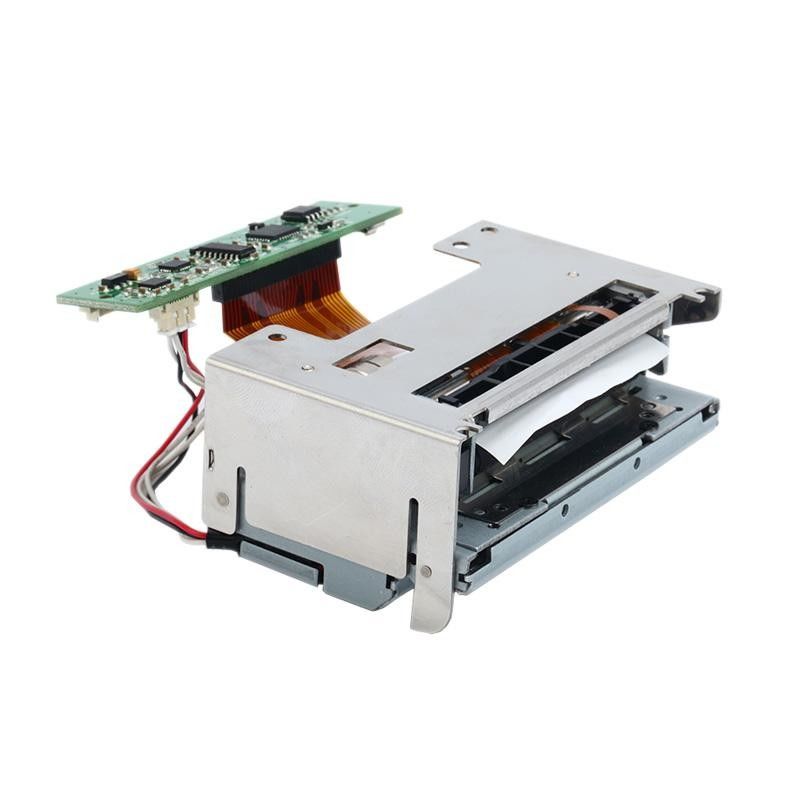

58mm Thermal Kiosk Printer Module PM628 for Financial Equipment
**With auto cutter
**Paper width: 58mm
**Support paper detection and black mark detection
**High printing speed: 90mm/s
| Specification: |
| Printing method |
Thermal-line dot method |
| Printing speed |
90mm/second (max.) |
| Dot structure |
384 dots/line |
| Resolution |
8 dots/mm |
| Dot pitch (Horizontal) |
0.125 mm (8 dots/mm)—Dot density |
| Dot pitch (Vertical) |
0.125 mm (8 dots/mm)—Line feed pitch |
| Effective printing area |
48 mm |
| Number of columns |
ANK 32 columns/line (maximum 12 x 24 dot font) |
| Paper width |
57 mm |
| Paper thickness |
60 to 85 μ m (some paper in this range may not be used because of paper characteristics) |
| Power supply |
For print head |
4.2 - 8.5 VDC ,average current 1.8A(at 5V),2.6A(at 7.2V),2.8A(at 8.0V) |
| For motor |
4.2 - 8.5 VDC,Maximum 0.46A |
| For cutter motor |
5-9 VDC,Maximum 1A |
| For logic |
2.7 - 5.25 VDC,Maximum 0.01A |
| For Module |
5V-8.5VDC,Maximum 5A Rated Voltage:7V. |
| Dimensions |
Module |
84×36×52.5mm (W×D×H) |
| Weight |
Module |
0.23KG |
| Life |
Head |
100million pulses or more(print ratio=12.5%) |
| Cutter |
1,000,000 cuts |
| Operating environment |
Operating temperature |
0° C to 50° C |
| Operating humidity |
20 to 85% RH (no condensation) |
| Storage temperature |
-25° C to 70° C |
| Storage humidity |
5 to 95% RH (no condensation) |
