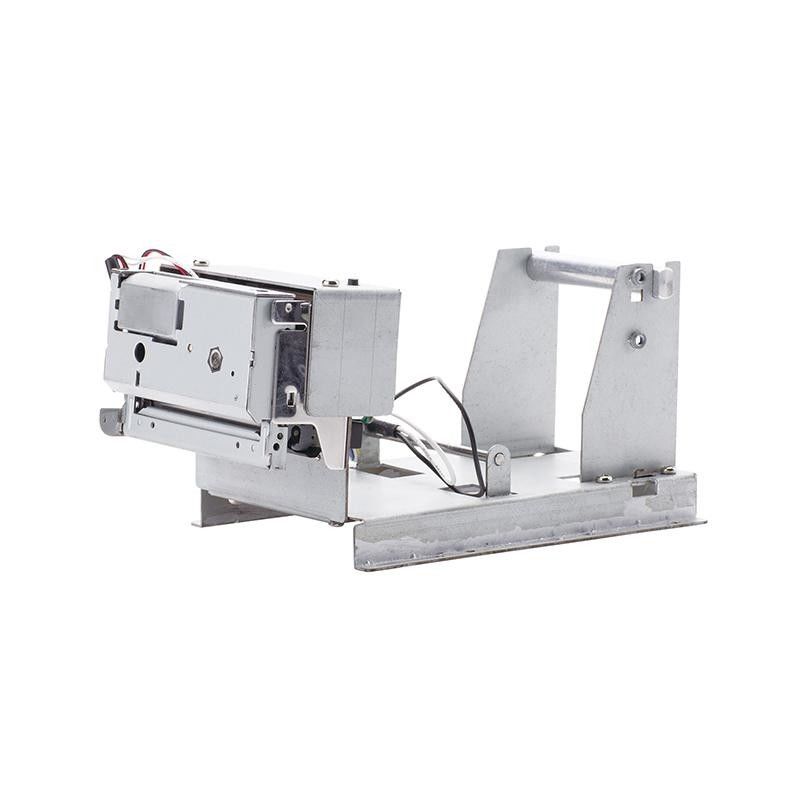

Name: 58mm Kiosk Thermal Printer PM201 Kiosk Receipt Printer High Speed Low Noise
Brand: Xiamen Rongta Technology
SKU: PM201
Price: 29 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Rongta

Certification: CE CCC

Model Number: PM201

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: $29

Packaging Details: 4pcs in a carton, dimension: 62*42*56cm

Delivery Time: OEM/ODM 35-55 days

Payment Terms: T/T, L/C

Supply Ability: 100000 units per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                58mm Kiosk Thermal Printer, PM201 Kiosk Thermal Printer, Low Noise Kiosk Receipt Printer


Product Model:	PM201	Printing Method:	Driect Thermal
Print Width:	48mm	Print Speed:	Print Speed
Printing Speed:	203dpi	Interface:	USB+RS232/USB+TTL
Power:	Input Power: DV 9V	Print Head Life:	50KM

Product Model:	PM201
Printing Method:	Driect Thermal
Print Width:	48mm
Print Speed:	Print Speed
Printing Speed:	203dpi
Interface:	USB+RS232/USB+TTL
Power:	Input Power: DV 9V
Print Head Life:	50KM

58mm Kiosk Thermal Printer PM201 Kiosk Receipt Printer High Speed Low Noise

58mm Kiosk Thermal Printer Kiosk Receipt Printer PM201

58mm Kiosk Thermal Printer PM201 Kiosk Receipt Printer High Speed Low Noise 0

**With auto cutter

**Paper width: 58mm

**Support paper detection and black mark detection

**High printing speed: 90mm/s

58mm Kiosk Thermal Printer PM201 Kiosk Receipt Printer High Speed Low Noise 1

Specification:
Printing method		Thermal-line dot method
Dot structure		384 dots/line
Resolution		8 dots/mm
Dot pitch (Horizontal)		0.125mm (8dots/mm)- Dot density
Dot pitch (Vertical)		0.125mm (8dots/mm)- Line feed pitch
Effective printing width		48mm
Number of columns		ANK 32 columns/line (max. 12x24 dot font)
Paper width		57mm
Paper thickness		60-85μm (some paper in this range may not be used because of paper characteristics)
Printing speed		248 dot lines/s (31mm/s) (at 5.0V); 576 dot lines/s (72mm/s) (at 7.2V); 800 dot lines/s (100mm/s) (at 8.0V).
Interface		TTL
Power supply	For print head	4.2-8.5 VDC, average current 1.8A(at 5V), 2.6A(at 7.2V), 2.8A (at 8.0V)
	For motor	4.2-8.5 VDC, Maximum 0.46A
	For cutter motor	5-9 VDC, Maximum 1A
	For logic	2.7-5.25 VDC, Maximum 0.01A
	For module	5-8.5 VDC, Maximum 5A Rated Voltage: 7V
Dimension	Module	115x40x64.6mm (W x D x H)
Weight	Module	0.29KG
Life	Head	100 million pulses or more (print ratio= 12.5%) 50km or more
	Cutter	1,000,000 cuts
Operating environment	Operating temperature	0° C to 50° C
	Operating humidity	20 to 85% RH (no condensation)
	Storage temperature	-25° C to 70° C
	Storage humidity	5 to 95% RH (no condensation)
Detection fuction	Head temperature detection	Via thermistor
	Head-up detection	Via photo interrupter
	Out-off-paper detection	Via photo interrupter
